Product Overview

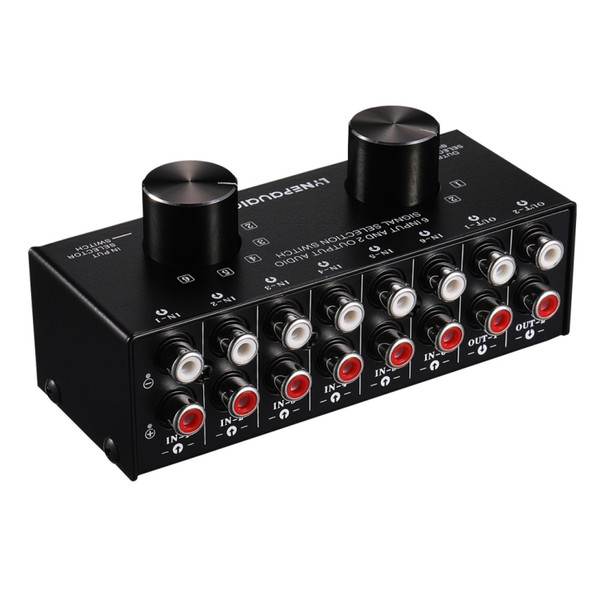

B026 – 6 Input 2 Output Or 2 Input 6 Output Audio Signal Source Selection Switcher RCA Port
Product description:
6 input 2 output or 2 output 6 input stereo audio signal selection switcher, with RCA port design
The produce adopts passive design, with direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch among a variety of stereo signal input and output through a common set or multiple sets of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player, need to be output on the amplifier or on active speakers,
The 6-channel audio signal selection switcher solves complicated line plug in and plug out, which uniformly connects device input signal sources to the switcher for easily selection.
The product uses standard RCA port design for input and output, and uses precise 6-level and 2-level manual switch design for the switcher,
Product parameters:
Power supply: passive design, direct insertion
Material: all-metal case
Input and output impedance: 10KΩ - 50KΩ
Frequency response: 20 – 20 kHz
Distortion: <0.002%
Insertion loss: <0.01dB
Signal gain: 0dB
Signal to noise ratio S/N: >98dB
Input port: standard RCA port
Output port: standard RCA port
Number of input channels: 6-channel stereo input (reverse 6-channel switched output)
Number of output channels: 2-channel stereo output (reverse 2-channel switched input)
Control switch: 6-level and 2-level precise manual selection switch
Input switching channel: 6 channels
Output switching channel: 2 channels
Net weight: 0.26 kg
Gross weight with packaging: 0.37 kg
Product size: length 122 mm X width 50 mm X height 38 mm
Packaging size: length 185mm X width 135mm X height 65mm
Kit list:
1 X 6 input 2 output or 2 input 6 output stereo audio signal selection switcher RCA port
Product description:
6 input 2 output or 2 output 6 input stereo audio signal selection switcher, with RCA port design
The produce adopts passive design, with direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch among a variety of stereo signal input and output through a common set or multiple sets of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player, need to be output on the amplifier or on active speakers,
The 6-channel audio signal selection switcher solves complicated line plug in and plug out, which uniformly connects device input signal sources to the switcher for easily selection.
The product uses standard RCA port design for input and output, and uses precise 6-level and 2-level manual switch design for the switcher,
Product parameters:
Power supply: passive design, direct insertion
Material: all-metal case
Input and output impedance: 10KΩ - 50KΩ
Frequency response: 20 – 20 kHz
Distortion: <0.002%
Insertion loss: <0.01dB
Signal gain: 0dB
Signal to noise ratio S/N: >98dB
Input port: standard RCA port
Output port: standard RCA port
Number of input channels: 6-channel stereo input (reverse 6-channel switched output)
Number of output channels: 2-channel stereo output (reverse 2-channel switched input)
Control switch: 6-level and 2-level precise manual selection switch
Input switching channel: 6 channels
Output switching channel: 2 channels
Net weight: 0.26 kg
Gross weight with packaging: 0.37 kg
Product size: length 122 mm X width 50 mm X height 38 mm
Packaging size: length 185mm X width 135mm X height 65mm
Kit list:
1 X 6 input 2 output or 2 input 6 output stereo audio signal selection switcher RCA port
Specification:
